Ayışığı Residences

ARCHITECTURAL | APARTMENT

01 AYISIGI RESIDENCES EXTERIOR
02 AYISIGI RESIDENCES EXTERIOR
03 AYISIGI RESIDENCES ENTRANCE
04 AYISIGI RESIDENCES MASTER LIVING ROOM
05 AYISIGI RESIDENCES MASTER LIVING ROOM

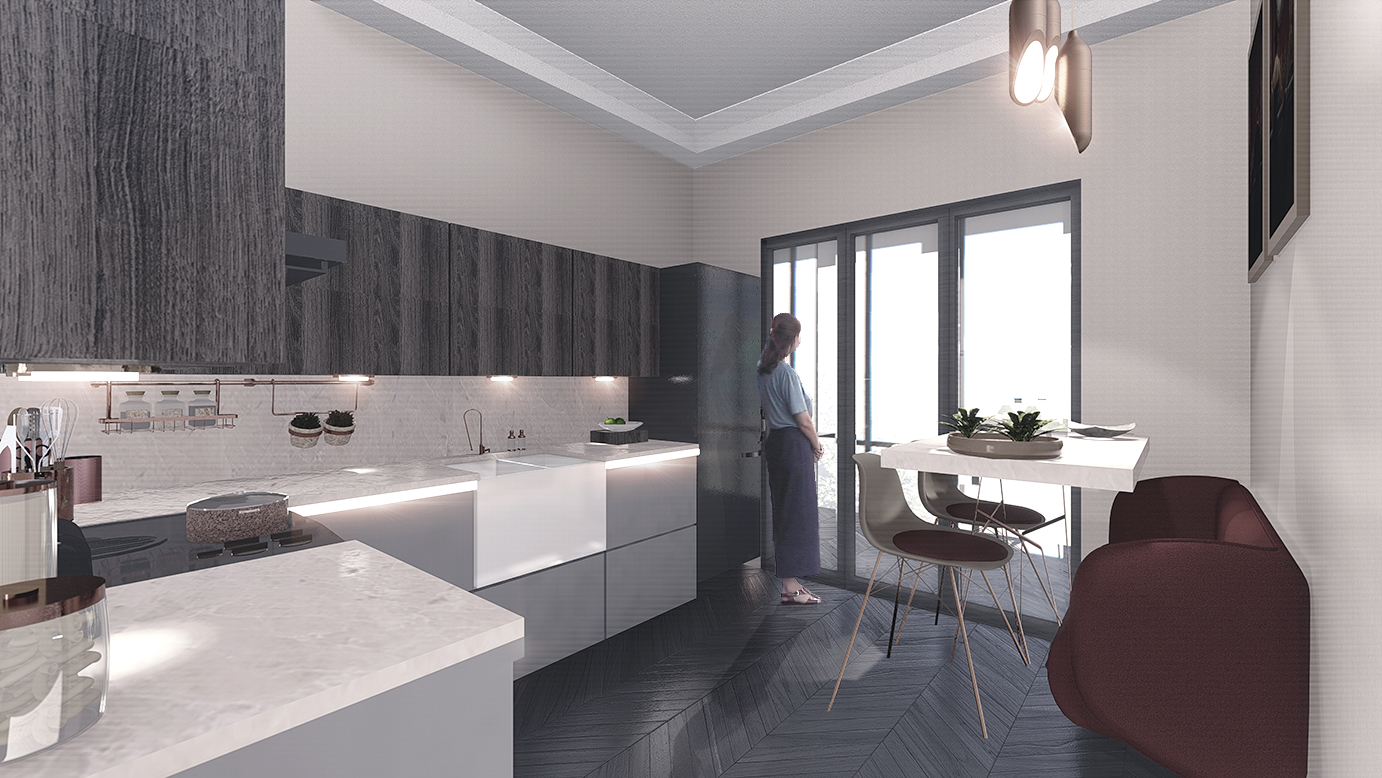

06 AYISIGI RESIDENCES KITCHEN
07 AYISIGI RESIDENCES LIVING ROOM
08 AYISIGI RESIDENCES MASTER BEDROOM
09 AYISIGI RESIDENCES BEDROOM

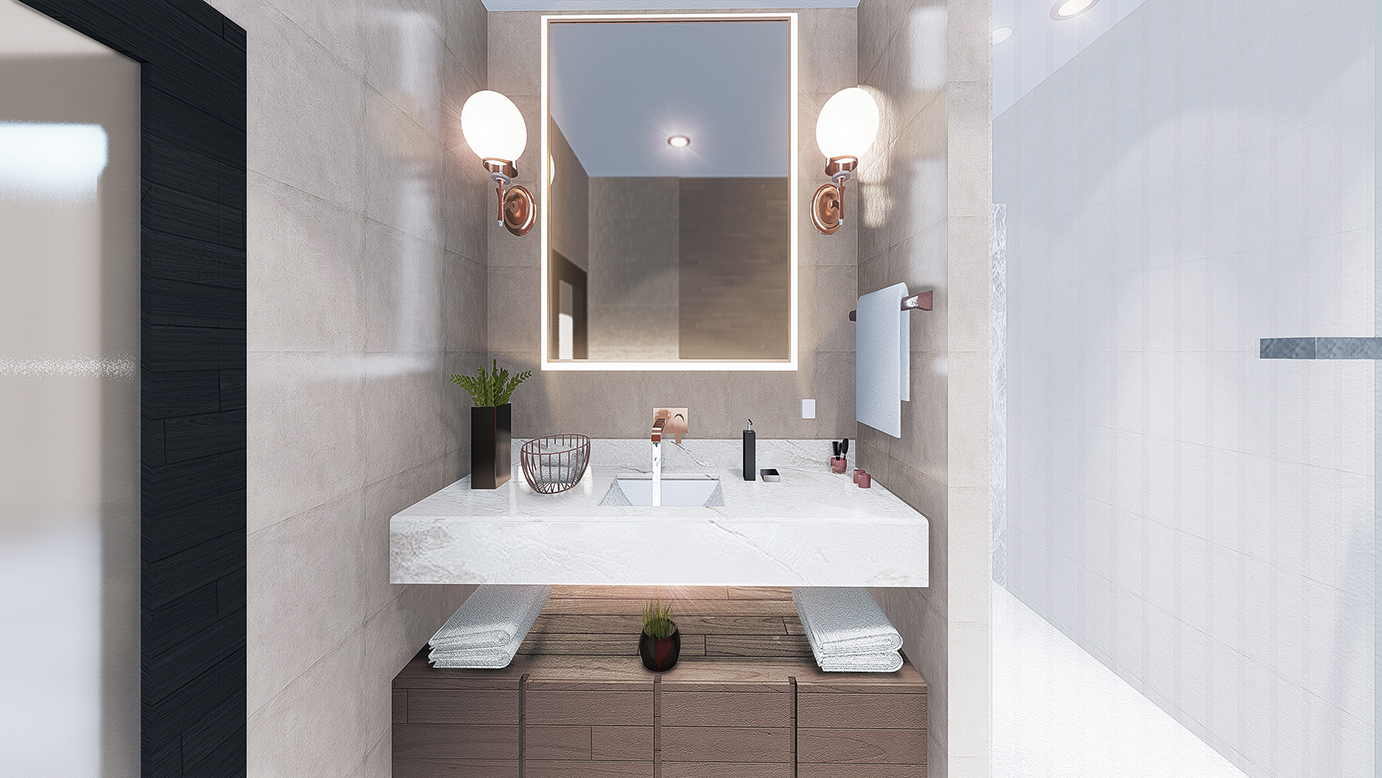

10 AYISIGI RESIDENCES BATHROOM

Project AYISIGI RESIDENCES | Location Tokat, Turkey | Date 2018 | Client Tokat Zile Altınpark Konut Yapı Kooperatifi | Status Under Construction | Size 8580 m²

Team Nurşah Kaplan, Büşra Ahıskalı

Relative to the north, the wind directions of the area are determined .
Relative to the north, the wind directions of the area are determined .
Vehicle and pedestrian access to the building area has been determined by considering the ‘secondary road’.
Vehicle and pedestrian access to the building area has been determined by considering the ‘secondary road’.
Project Area Border
Project Area Border

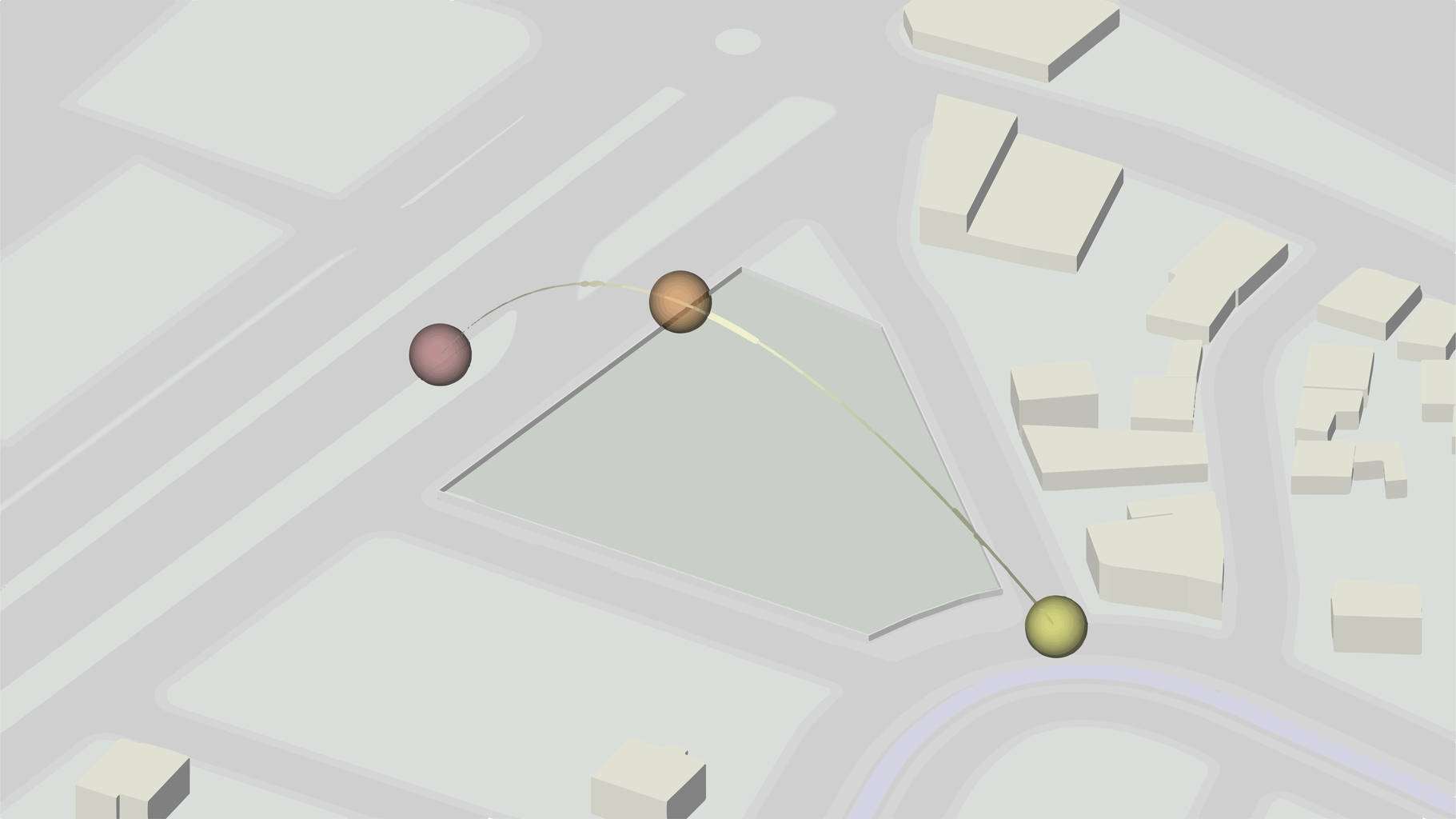

According to the direction of the sun, the position of the yablade and the glass gaps were calculated.
According to the direction of the sun, the position of the yablade and the glass gaps were calculated.

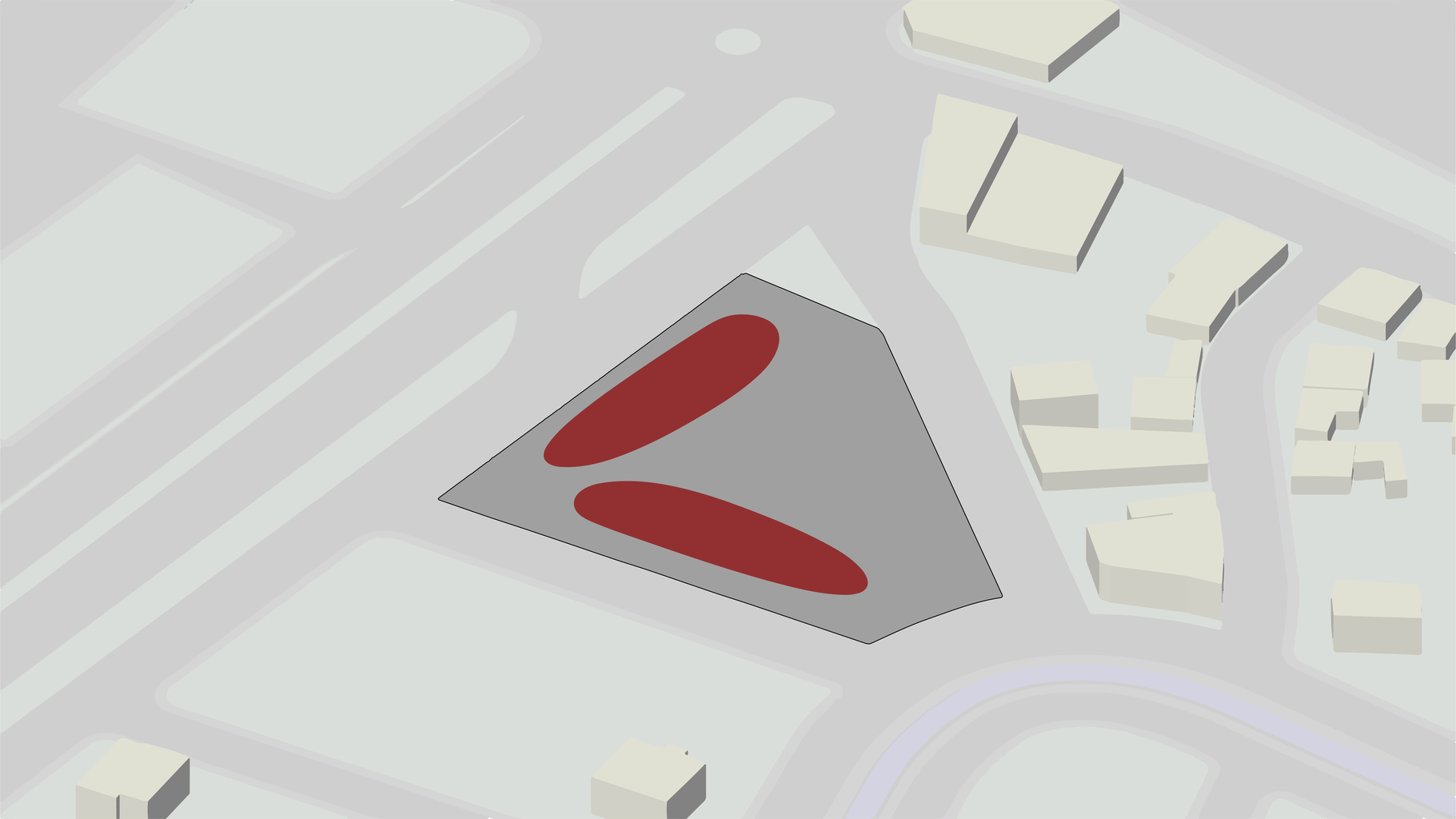

According to the environmental data , it was decided that the product should be inward-looking .
According to the environmental data , it was decided that the product should be inward-looking .
In the project, 1000 m² green area including different houses is designed.
In the project, 1000 m² green area including different houses is designed.
The project, which is desired to have a total use of 788 m² on the ground,is positioned as in the figure in order to have equal opportunities for the environment and users.
The project, which is desired to have a total use of 788 m² on the ground,is positioned as in the figure in order to have equal opportunities for the environment and users.
In order not to include large and long circulation areas in the project , the mass is designed to be 3 separate blocks.
In order not to include large and long circulation areas in the project , the mass is designed to be 3 separate blocks.
In each designed block, entrance is given to 2 apartments from each floor . Thus, 42 apartment solutions can be made in the total.
In each designed block, entrance is given to 2 apartments from each floor . Thus, 42 apartment solutions can be made in the total.

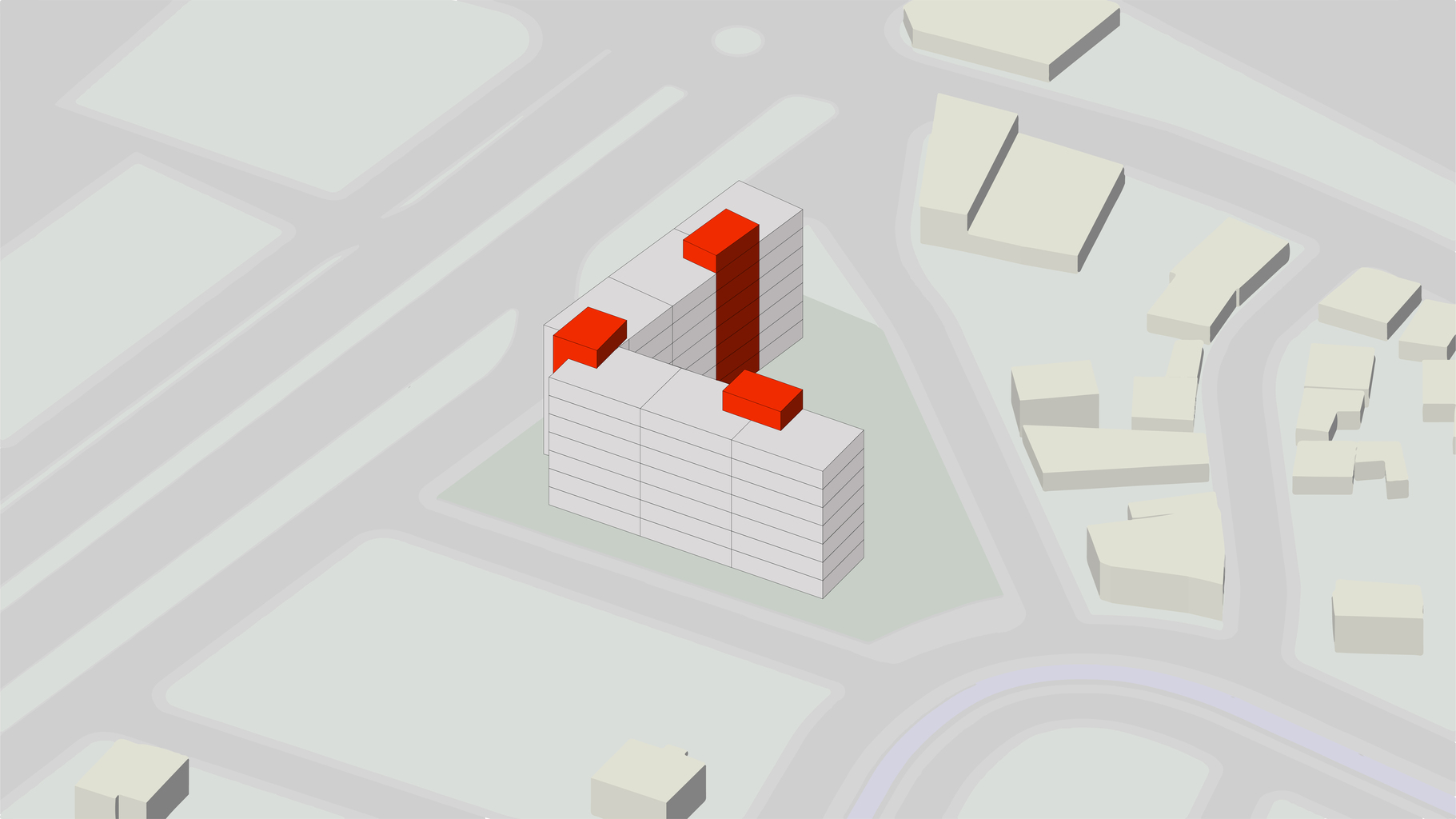

Min. dissolved in the field; 3 circulation areas including elevator, stairs, floor hall and storage area for each flat were designed.
Min. dissolved in the field; 3 circulation areas including elevator, stairs, floor hall and storage area for each flat were designed.

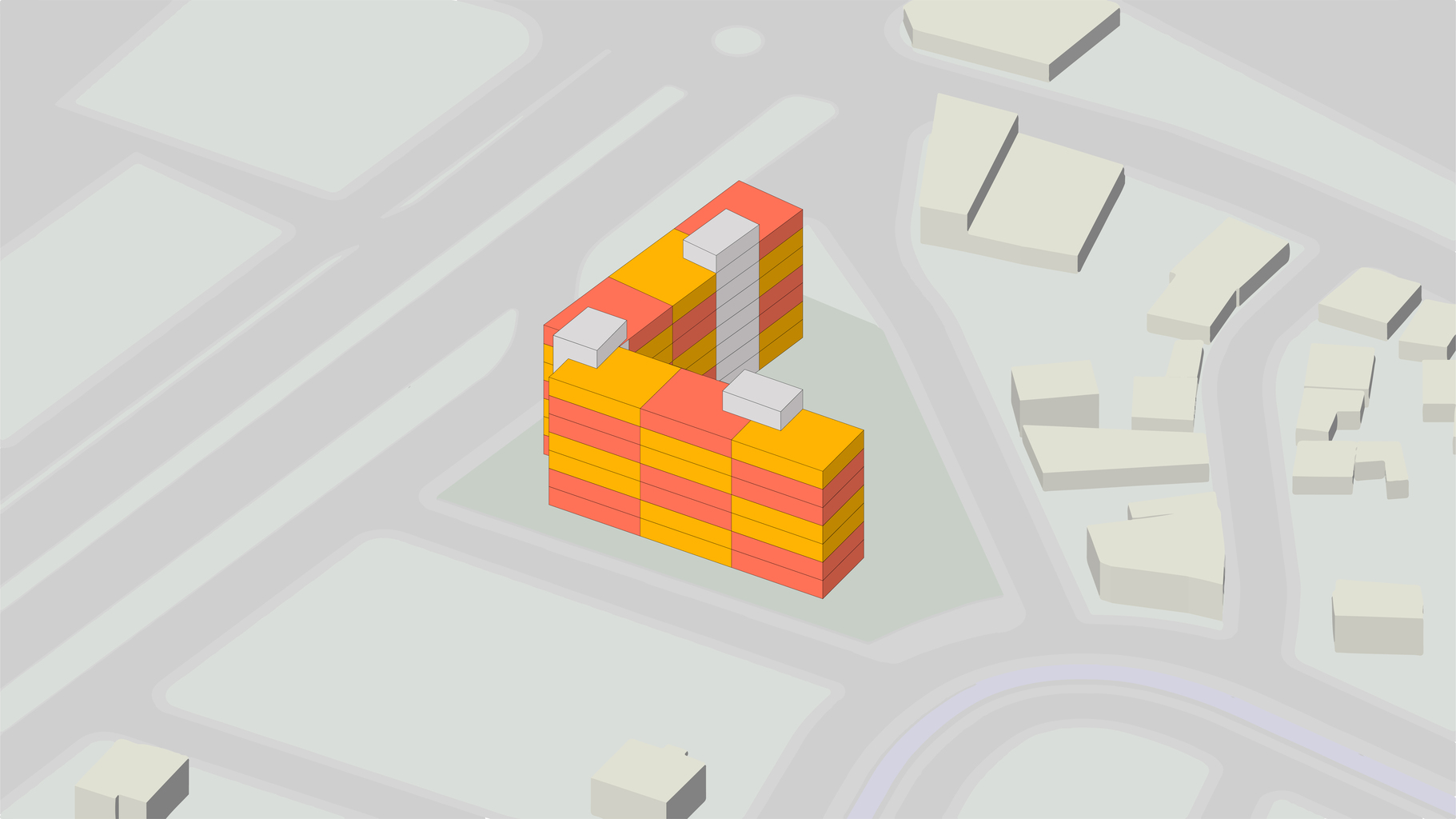

Mobility is ensured in the mono-lock façade by the presence of different typologies with the same m² in different locations in the floor plans.
Mobility is ensured in the mono-lock façade by the presence of different typologies with the same m² in different locations in the floor plans.

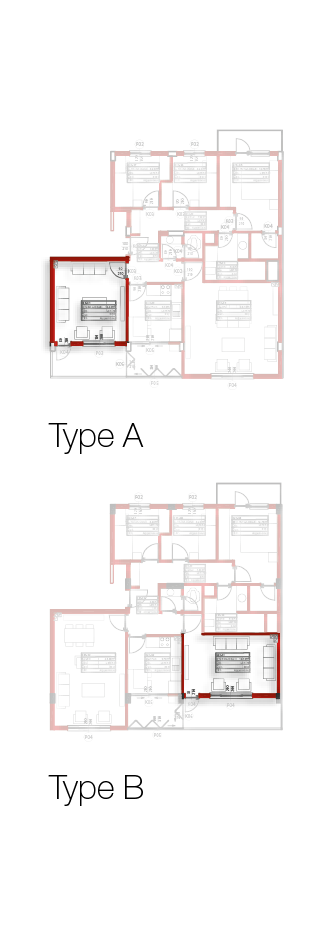

Type A
Type A

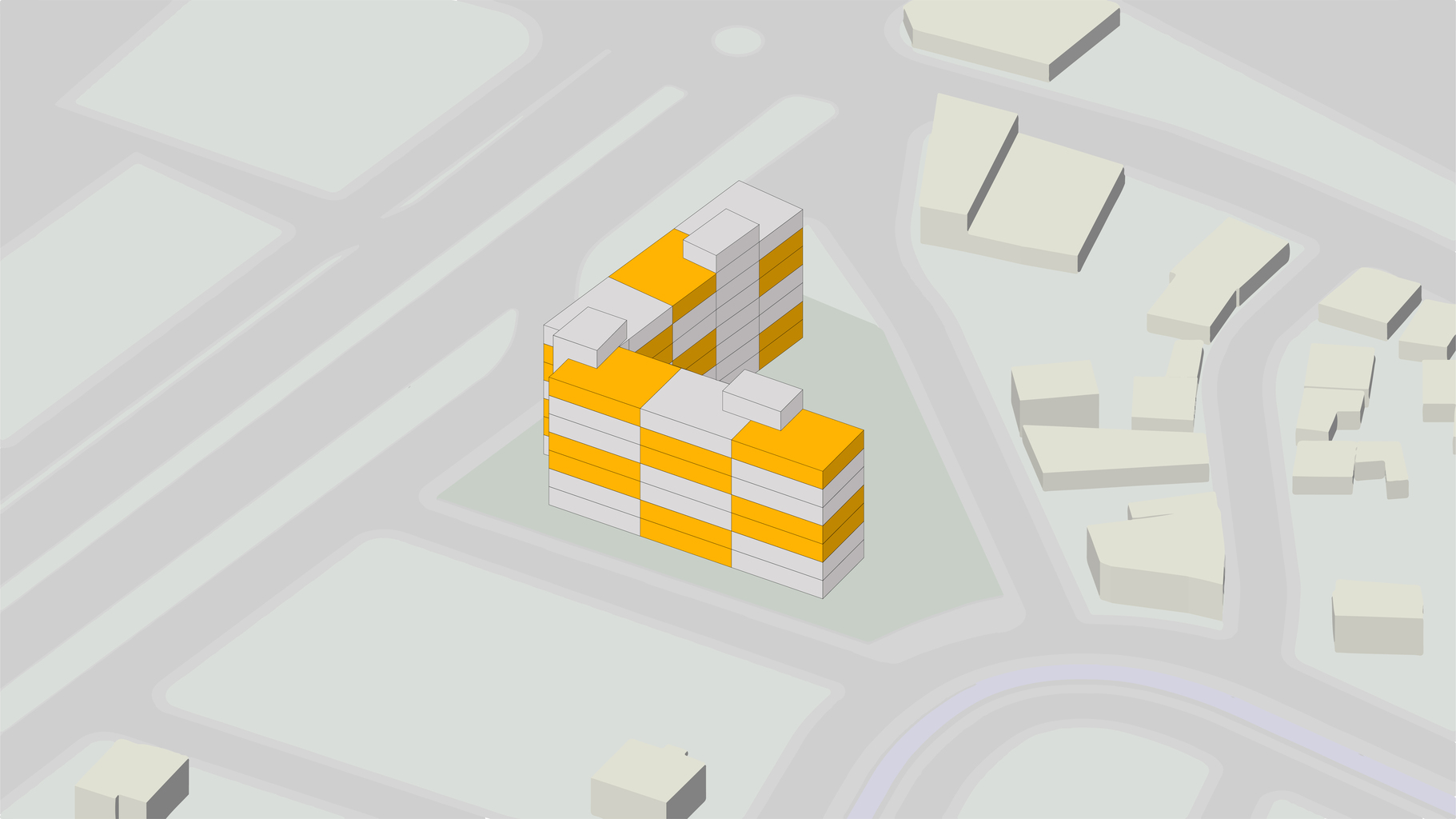

Type B
Type B
Type A Repeated on 1. 4. 5. Floor Plans
Type A Repeated on 1. 4. 5. Floor Plans
Type B Repeated on 2. 3. 6. Floor Plans
Type B Repeated on 2. 3. 6. Floor Plans
ENTRANCE
ENTRANCE

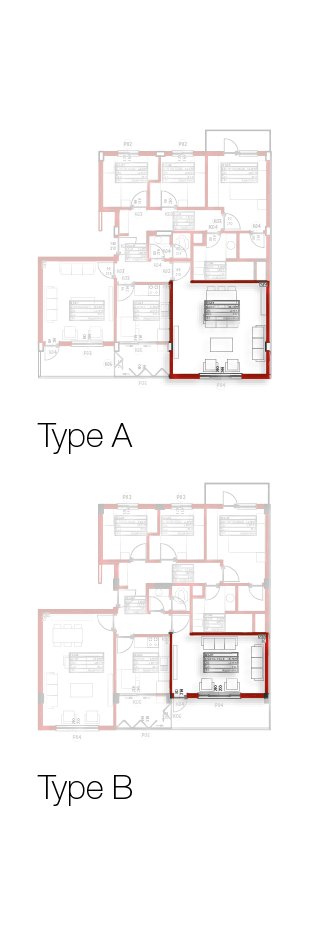

MASTER LIVING ROOM
MASTER LIVING ROOM
LIVING ROOM
LIVING ROOM
KITCHEN
KITCHEN

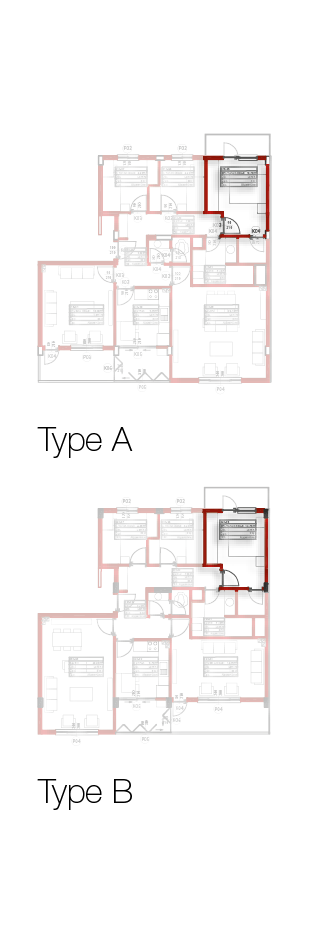

MASTER BEDROOM
MASTER BEDROOM
BEDROOMS
BEDROOMS
GUEST WC & BATHROOM
GUEST WC & BATHROOM

Tokat- is a mass housing project designed on a land of 3000 m² located in Güvenevler Mahallesi of Zile. The environment in which the predominantly residential projects constitute the settlement is still being structured. In the parcel that constitutes the whole of a building island, the project was decided to be an introverted-courtyard design by looking at the environmental data. In the project, with the idea of staying away from the main road, which is planned to be an intercity road in the coming years, it was desired that the bedrooms should face the courtyard and that the living areas should be oriented towards the external environment.

The project, which has a total construction area of 8580 m², consists of a total of 42pcs, 4 + 1 types. The green courtyard of the building, which is designed to use the whole land within the construction limit, is actually a roof garden due to the parking lot, shelter and technical units floor on the lower floor.

Since the employer is a cooperative, the apartment m² is designed equally. 2 different types of identical m²s have been developed to break the monoblock mass effect. With the use of these types differently on each floor, a unique movement is provided in the façade. Due to the importance given to the balcony life of the users, 1 open balcony, 1 closed balcony and 1 drying balcony are arranged for each apartment and the balconies are resolved diagonally on the front façade.
